Applications
Nitrogen Blanketing Storage Tanks
Nitrogen Inertization for Coal Mill
Food Packaging Industry
Electronics Industry
Metallurgical Industry
Brazing Industry
Coal Mine Fire Prevention
Chemical Industry
Metal Welding and Cutting
Technical Specifications
- Unrivaled Flow Range: From a minimum of 5 Nm3/hr to an astonishing 1000 Nm3/hr, our DX Model stands tall, surpassing industry standards and providing a seamless flow of nitrogen gas for all your applications.
- Purity Perfected: Gaztron leaves no room for compromise when it comes to purity. Our DX Model boasts an unparalleled purity range, stretching from an impressive 99.9995% (5 PPM) to a staggering 99.9999% (1 PPM). Rest assured, your nitrogen gas will meet the most stringent requirements, setting new benchmarks in quality.
- Mind-Blowing Dew Point: Operating in environments ranging from -40 degrees Celsius to -80 degrees Celsius, Gaztron’s Nitrogen Gas Generator Plant maintains an optimal dew point that guarantees superior performance even in the most demanding conditions.
- Pressure that Packs a Punch: Our DX Model is engineered to deliver nitrogen gas at varying pressures, ranging from a substantial 5 kg/cm2 to an awe-inspiring 140 kg/cm2. Whether your needs are modest or immense, we have you covered!
When it comes to nitrogen gas generation, Gaztron’s DX Model is the embodiment of precision, reliability, and sheer engineering brilliance. Say goodbye to mediocre performance and embrace a new era of confidence in your nitrogen gas supply.
Invest in Gaztron’s Nitrogen Gas Generator Plant (DX Model) today, and revolutionize your industrial processes with a force to be reckoned with. Trust us; you won’t find anything else that even comes close!
Available Models
| Model | Capacity |
|---|---|
| GAZ-DX-05 | 0 to 5 Nm³/hr |
| GAZ-DX-10 | 6 to 10 Nm³/hr |
| GAZ-DX-20 | 11 to 20 Nm³/hr |
| GAZ-DX-30 | 21 to 30 Nm³/hr |
| GAZ-DX-50 | 31 to 50 Nm³/hr |
| GAZ-DX-100 | 51 to 100 Nm³/hr |
Primary equipment utilized
- Air Compressor
- After Cooler
- Moisture Separator
- Air Dryer
- Air Receiver
- Three Stage Air Filtration System
- Twin Tower PSA System with Automatic Valve
- Gas Mixture System
- Twin Tower Copper Filled – Copper Unit
- Gas Dryer
- Gas Storage tank
- Ammonia Cracker or Gas Cylinder Unit
- All accessories with Analyser, Auto Drain Valve, Safety Valve, PRV etc.
Operational principle
The Gaztron Nitrogen Gas Generator Plant (DX Model) operates on a two-step process to ensure high nitrogen purity.
Step 1: Nitrogen Purity Enhancement The process begins by producing nitrogen with a purity of 99.5% through a Standard PSA nitrogen Gas Generator. The nitrogen with this purity is then directed through a De-Oxo Unit and Gas Dryer.
Step 2: Oxygen Removal and Moisture Elimination To eliminate the remaining 0.5% of oxygen, a combustion reaction is employed. Hydrogen is introduced into the De-oxo Unit, which contains a palladium catalyst. The reaction occurs, generating heat and effectively removing the oxygen content.
As a result of this reaction, the nitrogen purity is significantly increased to an impressive 99.9998%, which is approximately 2PPm. However, during this process, some moisture in the form of 2H2O is generated. To eliminate this moisture and achieve the desired dew point, the gas is passed through a Gas Dryer.
The Gaztron Nitrogen Gas Generator Plant (DX Model) operates through a two-step process involving nitrogen purity enhancement and oxygen removal, resulting in an exceptionally high nitrogen purity level of 99.9998%, with the moisture effectively removed using a Gas Dryer.
Advantages
- PSA systems ensure on-site availability of Oxygen, providing a convenient and seamless supply.
- Compared to alternative cryogenic procedures, PSA systems offer a more cost-effective method.
- Opting for PSA systems guarantees reduced financial losses during shutdowns, unlike cryogenic methods.
- The readily accessible unit of PSA systems allows for swift delivery and easy purchase, ensuring uninterrupted Oxygen availability.
Scope of Services & Engineering
- Fundamental analysis of customer’s system
- Gathering data on the installed system
- Developing comprehensive details of the civil, electrical, and instrumentation systems based on the design
- Overseeing the installation of the system
Delivery Period
- 45 days

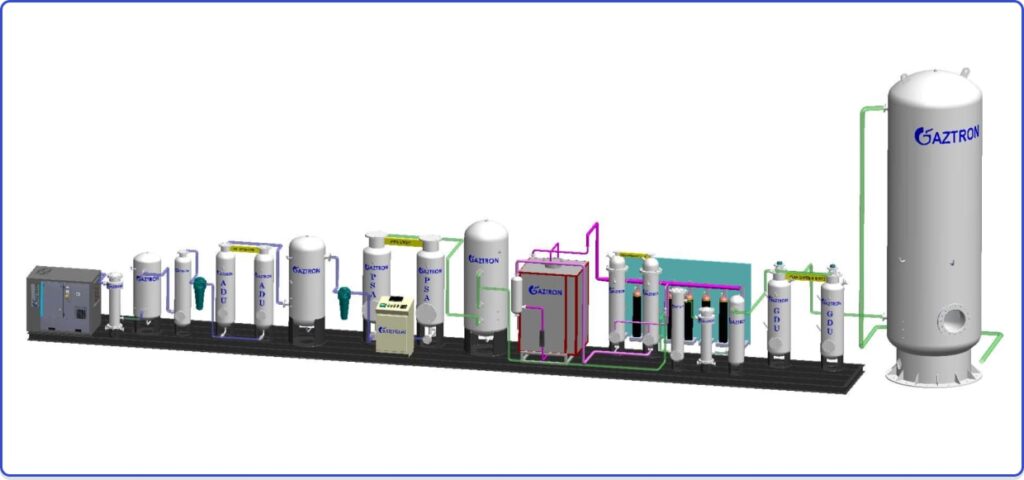

3D Reference Technical Drawing
What makes us different
Efficient & Robust Perfomance
Customizability
Reliability
Simple Installation
Remote Monitoring
High Profile Customers
Lowest Energy Consumption
Highly Skilled Technical Team
International Certification
After Sale Service
Own Manufacturing Facility
Fully Automatic Plants
Payback
If your business relies on a steady supply of nitrogen, you’re likely all too familiar with the challenges of renting and delivering bulky nitrogen cylinders. Not only do they take up valuable floor space and pose safety risks, but the associated costs, downtime, and contractual obligations can add up.
While the initial investment may seem daunting, Gaztron’s nitrogen generators typically pay for themselves in approximately 12 months, making them essentially free to operate after that point. Plus, you’ll have the peace of mind of a reliable, cost-effective nitrogen supply that’s under your control.
| Month | Saving (INR) | Gas Consumption (NM3) |
|---|---|---|
| Month 1 | ₹ 19,250 | 1750 |
| Month 2 | ₹ 34,650 | 3150 |
| Month 3 | ₹ 89,750 | 8150 |
| Month 4 | ₹ 1,44,650 | 13150 |
| Month 5 | ₹ 1,99,850 | 18150 |
| Month 6 | ₹ 2,54,650 | 23150 |
| Month 7 | ₹ 3,09,650 | 28150 |
| Month 8 | ₹ 3,64,650 | 33150 |
| Month 9 | ₹ 4,19,650 | 38150 |
| Month 10 | ₹ 4,74,650 | 43150 |
| Month 11 | ₹ 5,29,650 | 48150 |
| Month 12 | ₹ 5,84,650 | 53150 |
Say goodbye!!! to the headaches of nitrogen tank rental and delivery, and say hello to the convenience and cost savings of on-site nitrogen generation plant with Gaztron. Invest in a long-term solution that will benefit your business for years to come.
